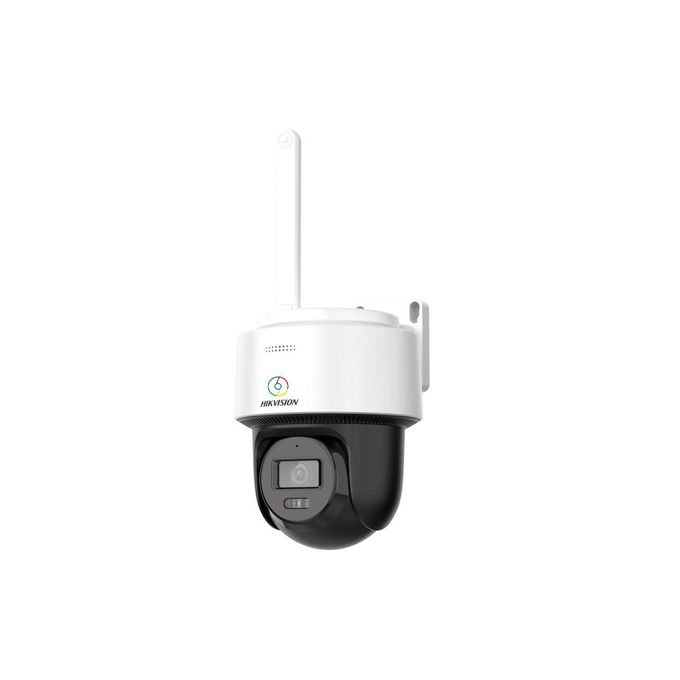

Hikvision 4 MP Fixed Outdoor Smart Hybrid-light 4G PT Network Camera

• Camera
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens
• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• PTZ
• Movement Range (Pan): 0° to 345°
• Movement Range (Tilt): 0° to 80°
• Pan Speed: Up to 25°/s
• Tilt Speed: Up to 20°/s
• DORI
• DORI

2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light Type: IR,White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Video
• Main Stream

50 Hz:

20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

50 Hz: 20 fps (768 x 432)

60 Hz: 20 fps (768 x 432)

• Video Compression

Main stream: H.265/H.264,

Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Audio
• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
• Network
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Security: Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
• User/Host

Up to 32 users

3 user levels: administrator, operator, and user

• Client: iVMS-4200,Hik-Connect
• Web Browser: Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
• Mobile Communication
• Standard: LTE-FDD,LTE-TDD
• Frequency

EU:

LTE-FDD: B1/3/5/7/8/20/28

IN:

LTE-FDD: B1/3/5/8

LTE-TDD: B34/38/39/40/41

LA:

LTE-FDD: B2/3/4/5/7/8/28/66

NA:

LTE-FDD: B2/4/5/12/13/17/66/71

• Uplink and Downlink Data Rate

EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

NA: uplink: 50 Mbps, downlink: 150 Mbps

• SIM Card Type: Nano SIM
• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker
• Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset KeyYes
• Event
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm,exception
• Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite
• General
• Power

12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

*A switching adapter is included in the package.

• Dimension

131.9 mm × 164 mm × 312.6 mm (5.19″ × 6.46″ × 12.31″)

131.9 mm × 164 mm × 332.6 mm (5.19 × 6.46″ × 13.10″)”

• Material: Plastic
• Package Dimension: 224 mm × 178 mm × 230 mm (8.82″ × 7.01″ × 9.06″)
• Approx. 600 g (1.32 lb.)
• With Package Weight: Approx. 900 g (1.98 lb.)
• Storage Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
• Approval
• EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

• Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• Protection: IP66: IEC 60529-2013
