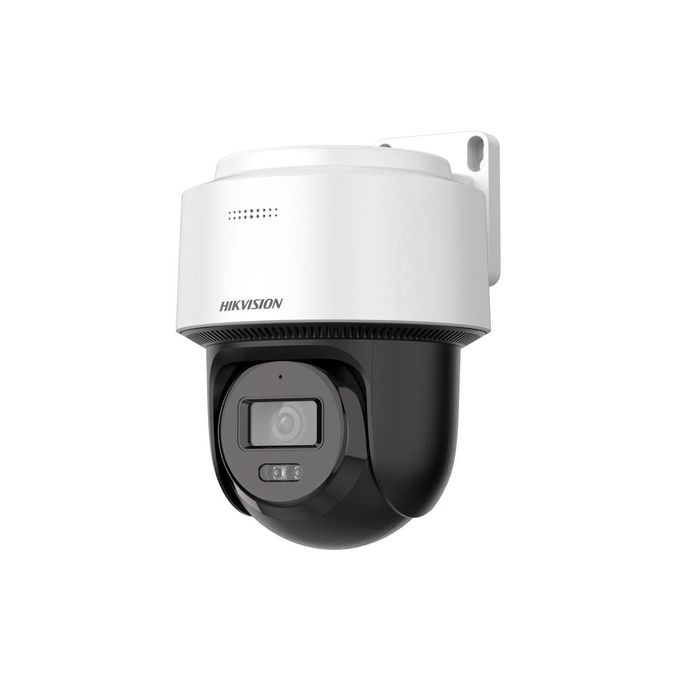

Hikvision 4MP OUTDOOR SMART HYBRID-LIGHT PT NETWORK CAMERA

• Camera
• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light
• Lens
• Focal Length: 2.8 mm, 4 mm
• FOV

2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• Aperture: F1.6
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 30 m
• IR Wavelength: 850 nm
• PTZ
• Movement Range (Pan): 0° to 345°
• Movement Range (Tilt): 0° to 80°
• Pan Speed: Up to 25°/s
• Tilt Speed: Up to 20°/s
• Video
• Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
• Video Compression: H.265, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline profile,Main profile,High profile
• H.265 Type: Main profile
• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
• Audio Sampling Rate8 kHz,16 kHz
• Environment Noise FilteringYes
• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• Image
• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone1 built-in microphone
• On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker1 built-in speaker
• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite
• General
• Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

• Dimension

Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)

With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46″ × 9.06″)”

Camera weight: 600 g (1.32 lb.)

With package weight: 900 g (2.0 lb.)

• Material: Plastic
• Operating Condition: -30 °C to 40 °C (-22 °F to 104 °F). Humidity: 90% or less (non-condensing)
• General Function: Mirror, password protection, watermark
• Approval
• EMCCE- EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment: CE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
• Protection: IP66 (IEC 60529-2013)
